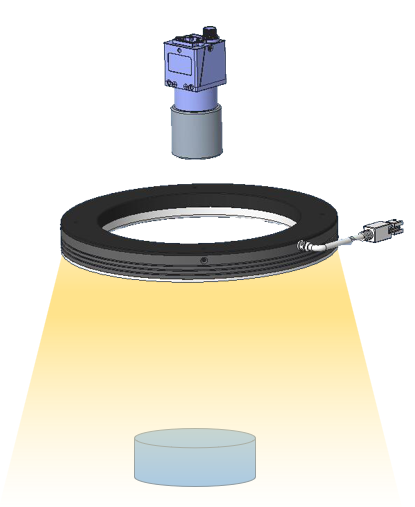

使用方式:

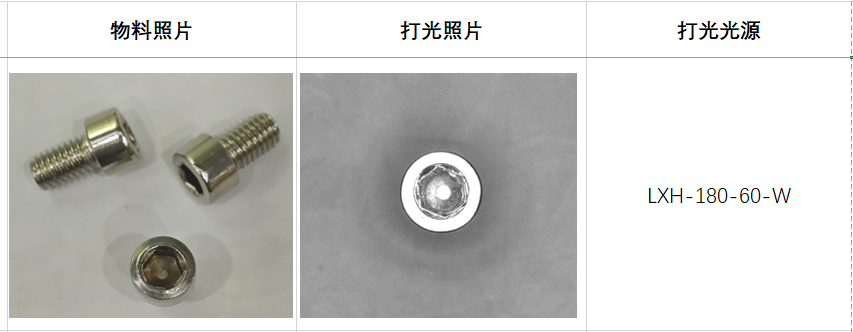

案例分享:
产品特点:
1>角度多样且可定制;
2>安装简单,设计紧凑;
3>高密度LED阵列,亮度高;
4>可选配漫射板,以适应不同的需要;
5>尺寸种类多,另外可定制三色RGB型,适应多种应用范围;
行业应用:
1>IC芯片外观及字符检测;
2>PCB基板检测;
3>产品包装缺陷检测;
4>产品标签检测;
5>显微镜照明
产品型号 | 产品颜色 | 电压(V) | 角度(度) |
LXH-50-45-R/BGW | R/BGW | 24 | 45 |
LXH-50-30-R/BGW | R/BGW | 24 | 30 |
LXH-60-60-R/BGW | R/BGW | 24 | 60 |
LXH-60-90-R/BGW | R/BGW | 24 | 90 |
LXH-70-60-R/BGW | R/BGW | 24 | 60 |
LXH-70-45-R/BGW | R/BGW | 24 | 45 |
LXH-70-30-R/BGW | R/BGW | 24 | 30 |
LXH-70-75-R/BGW | R/BGW | 24 | 75 |
LXH-70-80-R/BGW | R/BGW | 24 | 80 |
LXH-72-30-R/BGW | R/BGW | 24 | 30 |
LXH-74-60-R/BGW | R/BGW | 24 | 60 |
LXH-74-30-R/BGW | R/BGW | 24 | 30 |
LXH-75-60-R/BGW | R/BGW | 24 | 60 |
LXH-75-45-R/BGW | R/BGW | 24 | 45 |
LXH-90-80-R/BGW | R/BGW | 24 | 80 |
LXH-90-75-R/BGW | R/BGW | 24 | 75 |
LXH-90-70-R/BGW | R/BGW | 24 | 70 |
LXH-90-60-R/BGW | R/BGW | 24 | 60 |
LXH-90-45-R/BGW | R/BGW | 24 | 45 |
LXH-90-30-R/BGW | R/BGW | 24 | 30 |
LXH-92-75-R/BGW | R/BGW | 24 | 75 |
LXH-100-45-R/BGW | R/BGW | 24 | 45 |
LXH-100-20-R/BGW | R/BGW | 24 | 20 |
LXH-100-10-R/BGW | R/BGW | 24 | 10 |
LXH-105-60-R/BGW | R/BGW | 24 | 60 |
LXH-118-15-R/BGW | R/BGW | 24 | 15 |
LXH-120-60-R/BGW | R/BGW | 24 | 60 |
LXH-120-45-R/BGW | R/BGW | 24 | 45 |
LXH-120-30-R/BGW | R/BGW | 24 | 30 |
LXH-120-10-R/BGW | R/BGW | 24 | 10 |
LXH-132-20-R/BGW | R/BGW | 24 | 20 |
LXH-138-45-R/BGW | R/BGW | 24 | 45 |
LXH-150-60-R/BGW | R/BGW | 24 | 60 |
LXH-150-45-R/BGW | R/BGW | 24 | 45 |
LXH-150-30-R/BGW | R/BGW | 24 | 30 |
LXH-150-15-R/BGW | R/BGW | 24 | 15 |
LXH-170-30-R/BGW | R/BGW | 24 | 30 |
LXH-170-20-R/BGW | R/BGW | 24 | 20 |
LXH-180-60-R/BGW | R/BGW | 24 | 60 |
LXH-180-45-R/BGW | R/BGW | 24 | 45 |
LXH-180-30-R/BGW | R/BGW | 24 | 30 |
LXH-180-80-R/BGW | R/BGW | 24 | 80 |
LXH-184-30-R/BGW | R/BGW | 24 | 30 |
LXH-200-45-R/BGW | R/BGW | 24 | 45 |
LXH-200-30-R/BGW | R/BGW | 24 | 30 |
LXH-208-60-R/BGW | R/BGW | 24 | 60 |
LXH-272-20-R/BGW | R/BGW | 24 | 20 |
LXH-280-45-R/BGW | R/BGW | 24 | 45 |
LXH-284-30-R/BGW | R/BGW | 24 | 30 |
LXH-290-45-R/BGW | R/BGW | 24 | 45 |
LXH-320-45-R/BGW | R/BGW | 24 | 45 |
LXH-323-45-R/BGW | R/BGW | 24 | 45 |
LXH-350-90-R/BGW | R/BGW | 24 | 90 |
LXH-400-60-R/BGW | R/BGW | 24 | 60 |
